Drafting

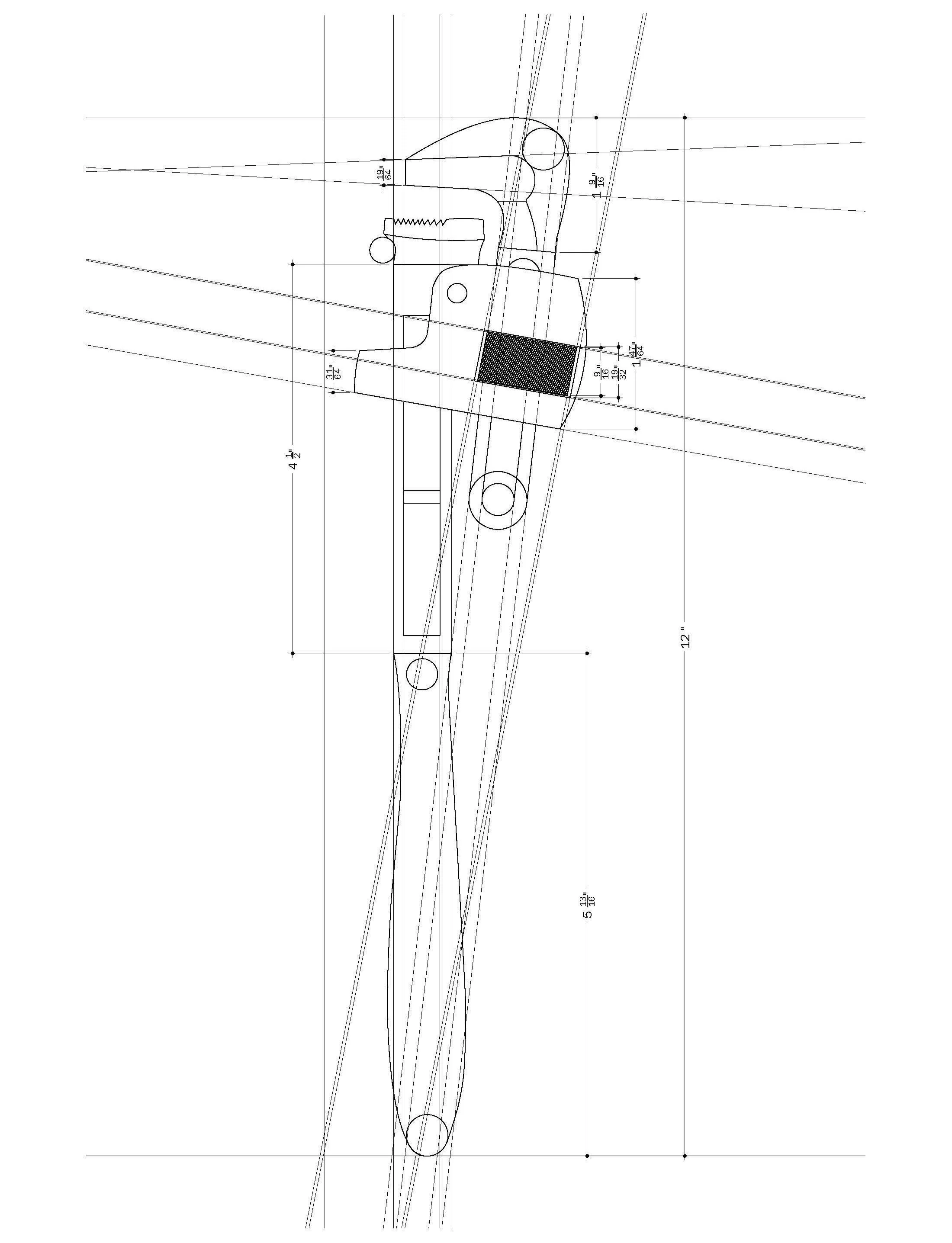

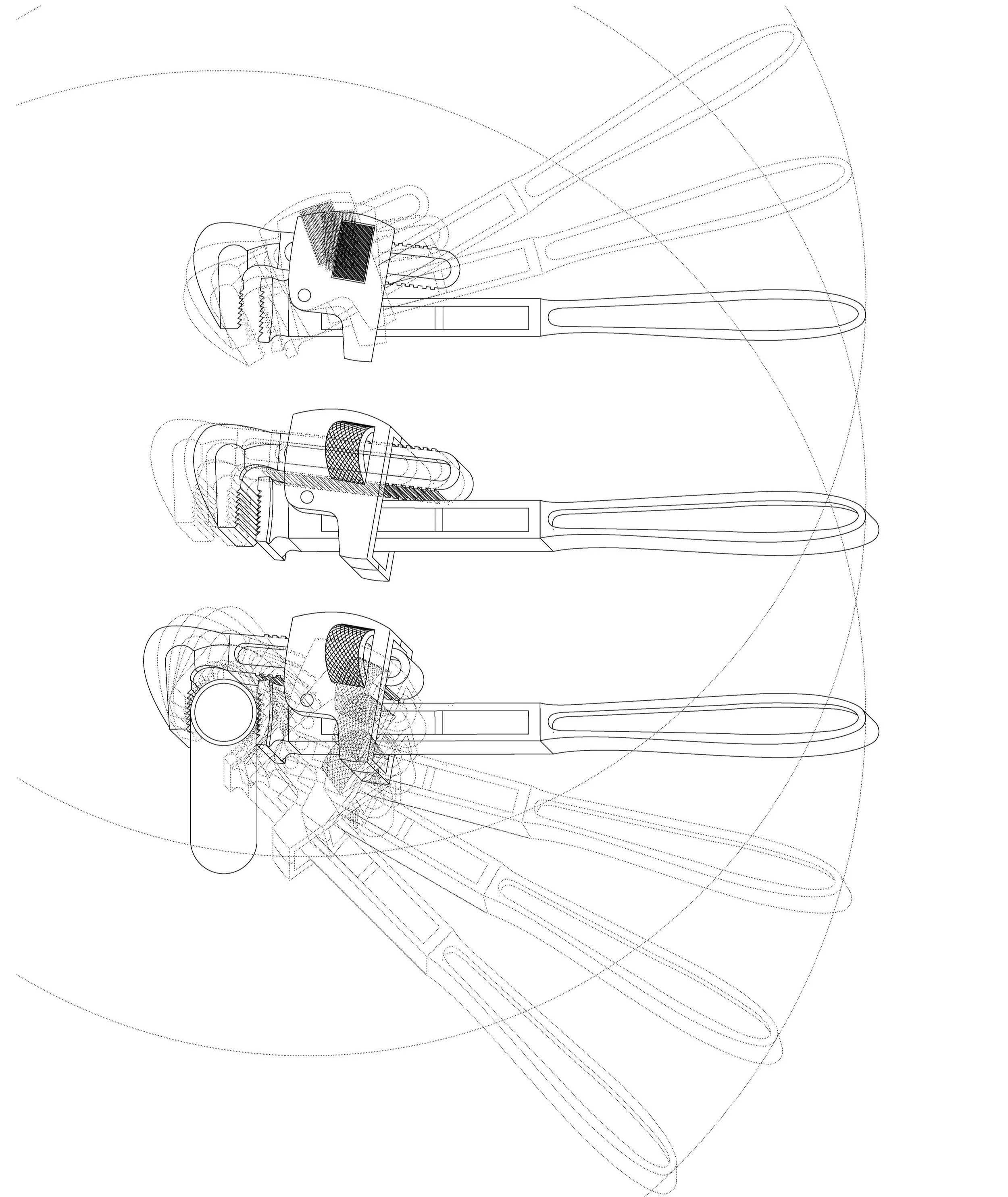

During a studio course in my freshman year of college there was a project in which we selected tool, hand drafted technical drawings, used CAD software to draft them, and developed both digital and physical models to present the tool and articulate it’s range of motion. Highlighted below are some pieces yielded from the process.

Physical Model

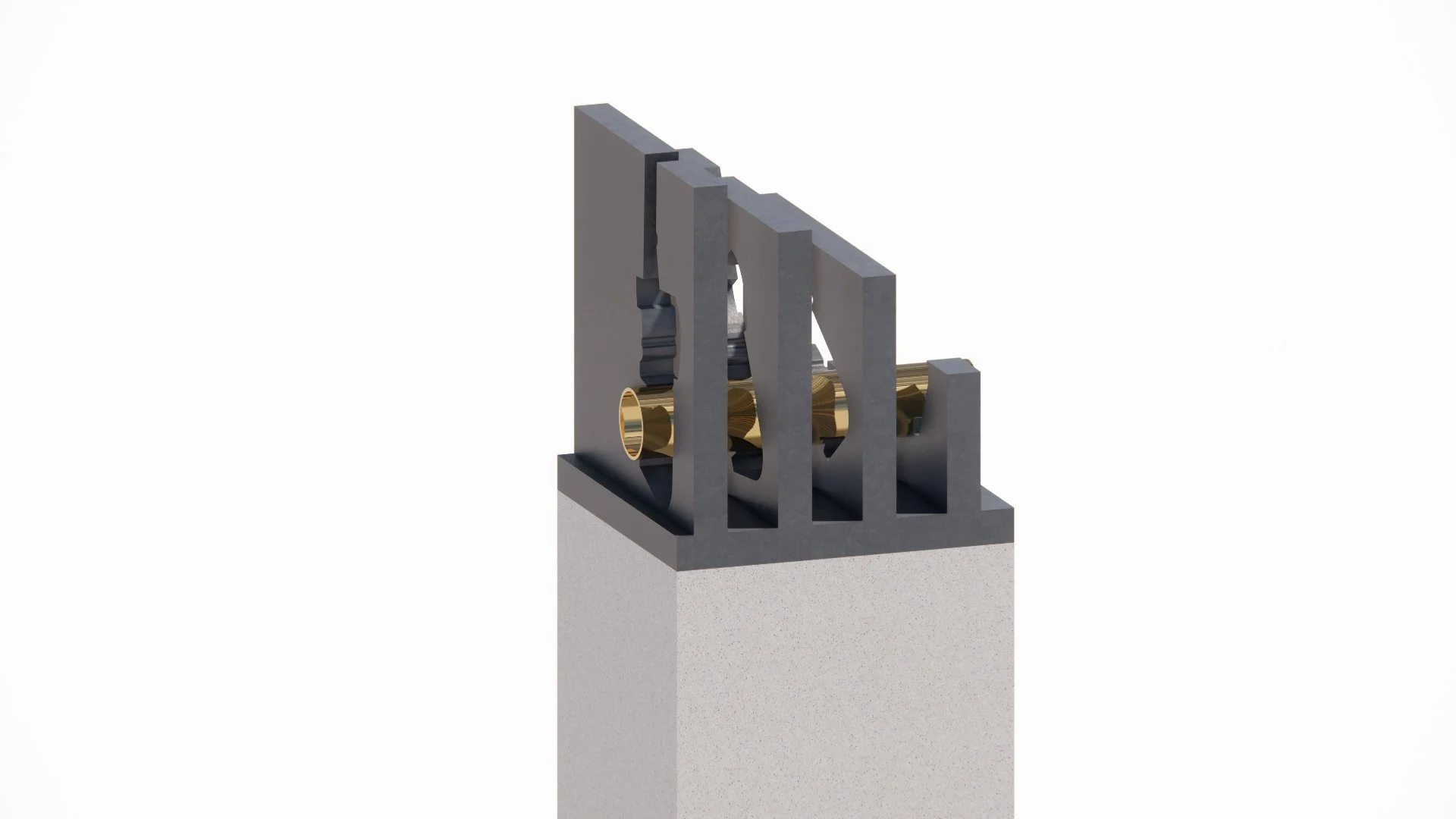

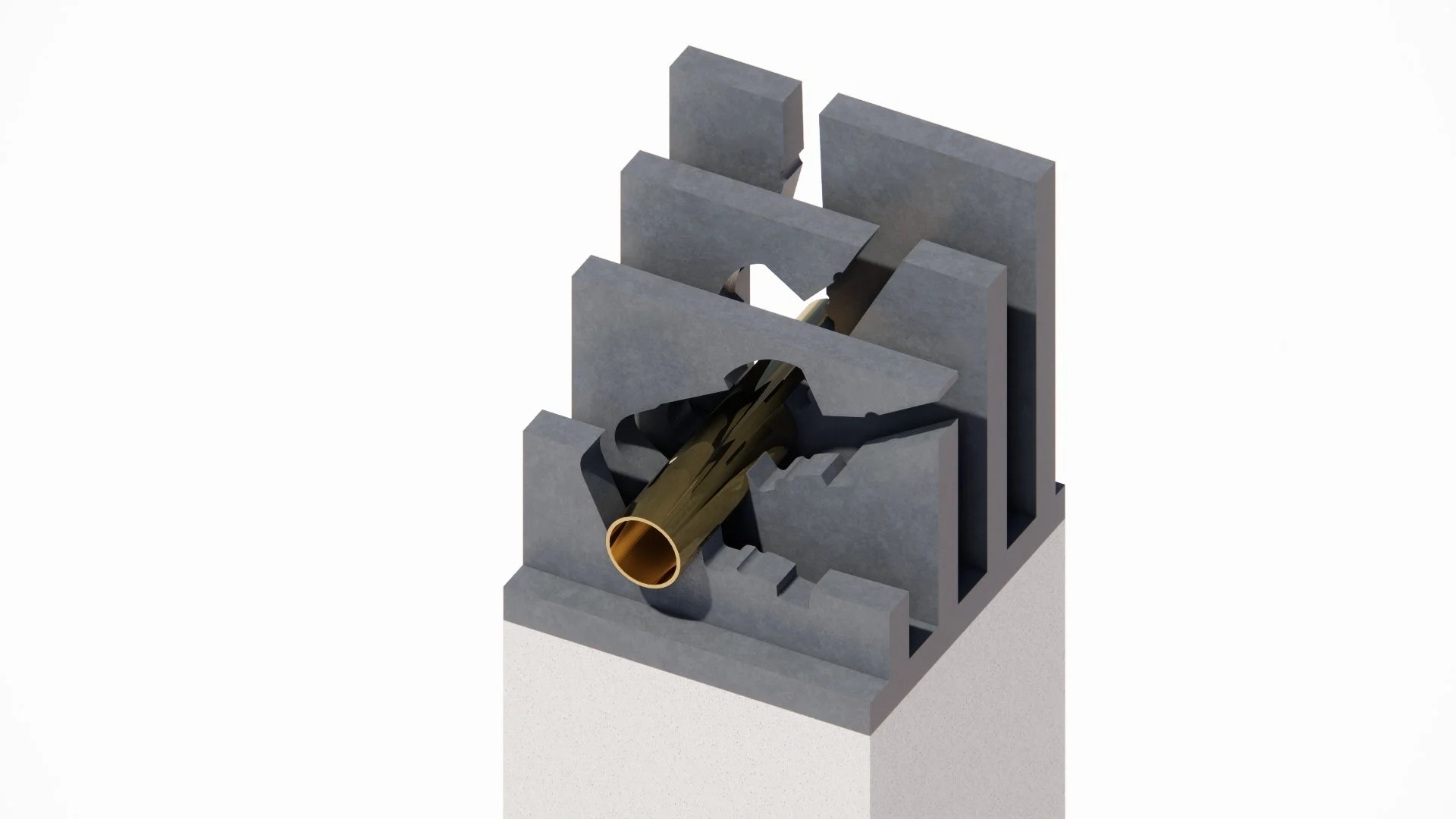

This model was designed using CAD software and then crafted in layers with a laser cutter. The layers were then aligned and attached to one another with chipboard occupied slots. The vertically laminated pieces were affixed to the base by means of a slotting technique.
